Getting Started¶
Install Cloud Custodian¶
These instructions will install Cloud Custodian. Cloud Custodian is a Python application that supports Python 3 on Linux, MacOS and Windows. We recommend using at least the minimum supported version of Python.
If python3 --version shows a Python version that is not actively
supported and the
steps above don't apply to your environment, you can still install a current
release of Python manually. This guide may be a useful reference.
Note
Some Enterprise/Long Term Support Linux distributions may support Python longer than the upstream support period. If you are in this situation it might be prudent to contact your vendor to see if there are other supported ways to use a more recent version. In some cases using the Docker container might be an appropriate solution.
To install Cloud Custodian :
python3 -m venv custodian
source custodian/bin/activate
pip install c7n # This includes AWS support
To install Cloud Custodian for Azure, you will also need to run:
pip install c7n_azure # Install Azure package
To install Cloud Custodian for GCP, you will also need to run:
pip install c7n_gcp # Install GCP Package
To install Cloud Custodian run:
python3 -m venv custodian
./custodian/bin/activate
pip install c7n # This includes AWS support
To install Cloud Custodian for Azure, you will also need to run:
pip install c7n_azure
To install Cloud Custodian for GCP, you will also need to run:
pip install c7n_gcp
To install via docker, run:
docker pull cloudcustodian/c7n
You'll need to export cloud provider credentials to the container when executing. One example, if you\'re using environment variables for provider credentials:
docker run -it \
-v $(pwd)/output:/home/custodian/output \
-v $(pwd)/policy.yml:/home/custodian/policy.yml \
--env-file <(env | grep "^AWS\|^AZURE\|^GOOGLE") \
cloudcustodian/c7n run -v -s /home/custodian/output /home/custodian/policy.yml
We provide a helm chart, you need to get the repo added to helm!
helm repo add c7n https://cloud-custodian.github.io/helm-charts/
helm repo update
helm search repo c7n -l
From there you can setup a values.yml file and install it. A good starting
point is this:
certManager:
enabled: true
policies:
source: configMap
configMap:
policies:
- name: missing-recommended-labels
mode:
type: k8s-admission
on-match: deny
operations:
- CREATE
- UPDATE
description: |
Kubernetes recommmended the following labels from its docs:
app.kubernetes.io/name
app.kubernetes.io/instance
app.kubernetes.io/version
app.kubernetes.io/component
app.kubernetes.io/part-of
app.kubernetes.io/managed-by
https://kubernetes.io/docs/concepts/overview/working-with-objects/common-labels/
resource: k8s.pod
filters:
- or:
- metadata.labels."app.kubernetes.io/name": absent
- metadata.labels."app.kubernetes.io/instance": absent
- metadata.labels."app.kubernetes.io/version": absent
- metadata.labels."app.kubernetes.io/component": absent
- metadata.labels."app.kubernetes.io/part-of": absent
- metadata.labels."app.kubernetes.io/managed-by": absent
webhook:
caBundle: will-be-replaced-by-cert-manager
rules:
- apiGroups: [""]
apiVersions: ["v1"]
operations: ["CREATE"]
resources: ["pods"]
scope: Namespaced
This will provide you with your first policy that enforces best practice labeling on your pods. Then you can install the chart!
helm install c7n-kube c7n/c7n-kube --namespace c7n-system -f values.yml --create-namespace
Note
Ensure you install the correct follow-on package depending on the cloud you are deploying to, otherwise you won't have the right modules for that specific cloud.
Explore Cloud Custodian¶
Run custodian -h to see a list of available commands.
Run custodian schema to see the complete list of cloud resources against
which you can run policies. To invoke command-line help with more information
about policy schema details, run custodian schema -h.
Run custodian schema <cloud-provider> to see the available resources for a
specific cloud provider: custodian schema aws
Run custodian schema <cloud-provider>.<resource> to see the available
filters and actions for each resource.
Drill down to get more information about available policy settings for each resource, where the model for the command is::
custodian schema <cloud>.<resource>.<category>.<item>
For example:
custodian schema aws.s3.filters.is-log-target
provides the following information::
Help
----
Filter and return buckets are log destinations.
Not suitable for use in lambda on large accounts, This is a api
heavy process to detect scan all possible log sources.
Sources:
- elb (Access Log)
- s3 (Access Log)
- cfn (Template writes)
- cloudtrail
:example:
.. code-block: yaml
policies:
- name: s3-log-bucket
resource: s3
filters:
- type: is-log-target
Schema
------
{ 'additionalProperties': False,
'properties': { 'type': { 'enum': ['is-log-target']},
'value': { 'type': 'boolean'}},
'required': ['type'],
'type': 'object'}
Additionally, you can use the schema command to view information on the different supported modes in Cloud Custodian::
custodian schema mode
Cloud Provider Specific Help¶
For specific setup isntructions for AWS, Azure, and GCP, visit the relevant getting started page.
Troubleshooting & Tinkering¶
The policy is validated automatically when you run it, but you can also validate it separately:
custodian validate custodian.yml
You can also check which resources are identified by the policy, without running any actions on the resources:
custodian run --dryrun -s . custodian.yml
Monitor resources¶
Additional commands let you monitor your services in detail.
You can generate metrics, log outputs, and output to blob storage in each of the different providers (AWS, Azure, Google Cloud Platform). See the cloud provider specific help at the top of this section for more information.
Editor Integration¶
If your preferred editor supports language servers, you can configure it to provide completion and validation while authoring policies.
First generate use custodian to generate a json schema file::
custodian schema --json > schema.json
Next install a YAML plug-in for your editor, like YAML for Visual Studio Code or coc-yaml for coc.nvim. Both plug-ins use the yaml-language-server under the hood.
You'll then need to configure your plug-in to use the generated schema.json
as the schema for your policy files. For example in Visual Studio Code,
navigate to the settings for the YAML plug-in and under Schemas, edit
configuration file and add the following schema configuration::
"yaml.schemas": {
"./schema.json": "*yml"
},
Note the path to schema.json can either be either relative or the full path.

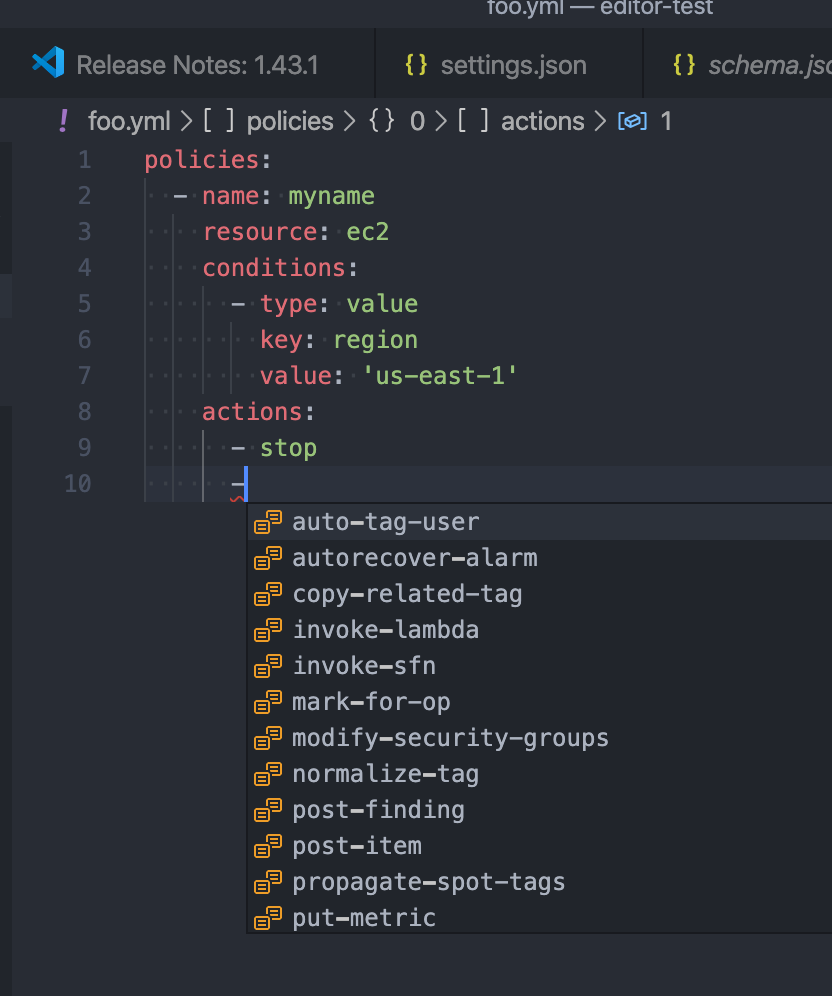

You'll now have completion and validation while authoring policies.
Note if you're authoring policies in json you can also configure the json-language-server for the same.
Also, if you're seeing errors like 'Request textDocument/hover failed with
message: Cannot read property '$ref' of null' try re-creating your
schema.json file.
Tab Completion¶
To enable command-line tab completion for custodian on bash do the following
one-time steps:
Run:
activate-global-python-argcomplete
Now launch a new shell (or refresh your bash environment by sourcing the appropriate file).
Troubleshooting¶
If you get an error about "complete -D" not being supported, you need to update bash. See the "Base Version Compatability" note `in the argcomplete docs.
If you have other errors, or for tcsh support, see the argcomplete docs.
If you are invoking custodian via the python executable tab completion will not work.
You must invoke custodian directly.
